Ultimate Guide to Toggle Switches
Complete technical specifications, applications, and selection guide from industry experts
Table of Contents
What is a Toggle Switch?
A toggle switch is a type of electrical switch that is operated by moving a lever back and forth to open or close an electrical circuit. The term "toggle" refers to the mechanism that alternates between two or more positions.
Key Characteristics:
- • Mechanical actuation via lever movement
- • Positive position indication
- • Reliable electrical contact
- • Multiple pole and throw configurations
- • Long operational life

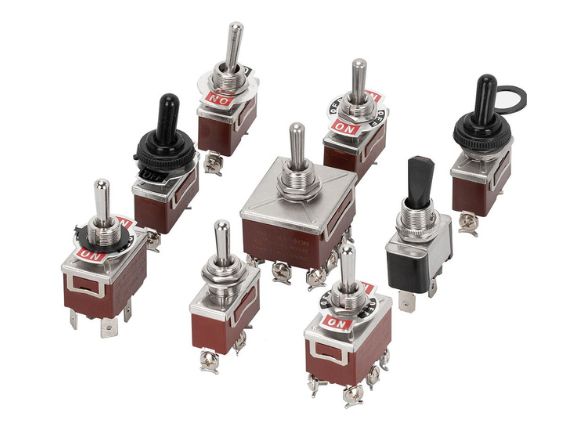

Types of Toggle Switches
SPST (Single Pole Single Throw)
Simple ON/OFF switch with two terminals. Most basic toggle switch configuration.
SPDT (Single Pole Double Throw)
Three-terminal switch that can connect to either of two circuits.
DPST (Double Pole Single Throw)
Four-terminal switch controlling two separate circuits simultaneously.
DPDT (Double Pole Double Throw)
Six-terminal switch for complex switching applications.
Momentary Toggle
Spring-loaded switch that returns to original position when released.
Illuminated Toggle
Features built-in LED indicator for status visualization.
Technical Specifications
Electrical Ratings
| Parameter | Standard Range | Heavy Duty | Notes |
|---|---|---|---|
| Voltage Rating | 125V AC / 250V AC | 600V AC | Maximum operating voltage |
| Current Rating | 6A - 20A | 30A - 50A | Resistive load @ rated voltage |
| Contact Resistance | ≤ 50mΩ | ≤ 20mΩ | Initial contact resistance |
| Insulation Resistance | ≥ 100MΩ | ≥ 500MΩ | At 500V DC |
| Dielectric Strength | 2000V AC | 3000V AC | 1 minute test |
Mechanical Specifications
Environmental Ratings
Applications & Industries
Automotive
Dashboard controls, lighting systems, accessory power, window controls
Industrial
Machine controls, motor starters, emergency stops, process equipment
Residential
Light switches, ceiling fans, garage doors, security systems
Marine
Navigation equipment, bilge pumps, lighting, engine controls
High-Current Applications
- • Motor control circuits (up to 50A)
- • HVAC system controls
- • Industrial heating elements
- • Heavy-duty lighting systems
- • Welding equipment controls
Low-Voltage Applications
- • Control panel indicators
- • Audio equipment switching
- • LED lighting controls
- • Battery-powered devices
- • Signal routing systems
Toggle Switch Selection Guide
Important: Always verify electrical ratings match or exceed your application requirements. Consider derating factors for inductive loads.
Step-by-Step Selection Process
Determine Circuit Requirements
Calculate maximum voltage, current, and power requirements for your application.
Select Switch Configuration
Choose the appropriate pole and throw configuration based on circuit needs.
Environmental Considerations
Evaluate operating conditions and select appropriate sealing/protection.
Mechanical Requirements
Consider panel mounting, actuator style, and operational feel.
Quick Selection Reference
| Application | Recommended Type | Key Features |
|---|---|---|
| General Lighting | SPST, 15A/125V | Standard duty, snap-action |
| Motor Control | DPST, 30A/250V | Heavy duty contacts, high breaking capacity |
| Audio Equipment | DPDT, 6A/125V | Gold-plated contacts, low noise |
| Marine/Outdoor | SPDT, 20A/125V | Sealed construction, IP65 rating |
Installation & Wiring Guide
Installation Steps
Panel Preparation
Cut mounting hole to specified diameter (typically 12mm for standard switches)
Switch Insertion
Insert switch through panel hole from front side
Securing
Tighten hex nut from rear to secure switch to panel
Wiring Connection
Connect wires to appropriate terminals using proper gauge wire
Testing
Verify proper operation and continuity before energizing circuit
Common Wiring Configurations
SPST Wiring
Simple ON/OFF control for single circuit
SPDT Wiring
Three-way switching between two circuits
Safety Guidelines
- • Always turn off power before installation
- • Use appropriate wire gauge for current rating
- • Ensure proper grounding where required
- • Follow local electrical codes
- • Use proper torque on terminal connections
- • Avoid over-tightening mounting hardware
- • Test installation before final assembly
- • Consider professional installation for high-voltage applications
Maintenance & Troubleshooting
Preventive Maintenance
Monthly Inspection
- • Visual inspection for damage or wear
- • Check actuator movement and feel
- • Verify proper mounting security
Quarterly Maintenance
- • Test electrical continuity
- • Check terminal connections
- • Clean switch exterior if needed
Annual Service
- • Complete electrical testing
- • Measure contact resistance
- • Replace if approaching life limit
Common Issues & Solutions
Switch Won't Stay in Position
Causes: Worn detent mechanism, damaged spring
Solution: Replace switch assembly
Intermittent Contact
Causes: Oxidized contacts, loose connections, worn contacts
Solution: Check wiring tightness, replace if contacts are worn
High Operating Force
Causes: Dirt/contamination, worn mechanism, improper lubrication
Solution: Clean switch exterior, replace if internal contamination
Arcing or Sparking
Causes: Overloaded circuit, inductive load without suppression
Solution: Verify ratings, add arc suppression for inductive loads
Standards & Certifications
Goboll Toggle Switches Meet International Standards
UL
VDE
TÜV
CE
ETL
KC
CCC
SAA
International Standards
IEC 61058-1
Switches for appliances - General requirements
UL 61058-1
Switches for appliances - North American standard
EN 61058-1
European standard for appliance switches
CSA C22.2 No. 61058-1
Canadian standard for switches
Quality Certifications
ISO 9001:2015
Quality Management System certification
ISO 14001:2015
Environmental Management System
ISO 45001:2018
Occupational Health and Safety Management
CNAS Accreditation
Laboratory testing accreditation since 2007
Why Choose Goboll Toggle Switches?
Years Experience
Founded in 1989, leading China's switch manufacturing industry
Product Specifications
Comprehensive range of toggle switches for every application
National Patents
Continuous innovation and R&D excellence
Advanced Testing Laboratory
CNAS accredited lab, TÜV Rheinland WMT certified, UL CTDP certified
Global Reach
Exported to USA, Germany, Japan, Australia and 20+ countries worldwide
Need Help Selecting the Right Toggle Switch?
Our technical experts are ready to help you choose the perfect toggle switch for your application. Contact us for personalized recommendations and technical support.
