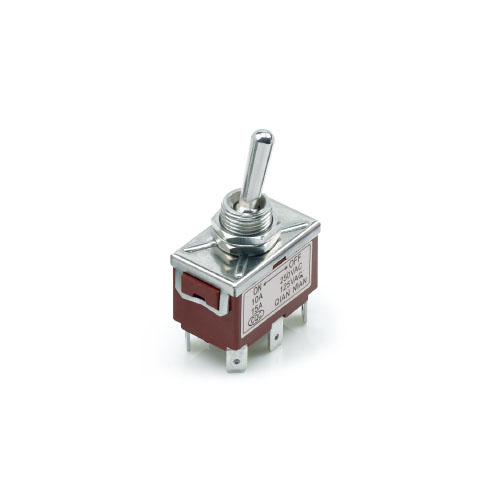

QN201A-30J-1-6-Way-Toggle-Switch
Model: QN201A-30J-1-6-Way-Toggle-Switch
Technical Specifications
Product Type:
Toggle Switches
Rated Current:
16A
Rated Voltage:
250V AC
Contact Form:
DPDT
Toggle Switch Wiring Diagram
SPST (Single Pole Single Throw)
Simple on/off control for single circuit
SPDT (Single Pole Double Throw)
Switch between two different circuits
DPST (Double Pole Single Throw)
Simultaneous control of two separate circuits
DPDT (Double Pole Double Throw)
Switch two circuits between two different positions each
Wiring Safety Notes
- • Always turn off power before wiring
- • Check voltage and current ratings match your application
- • Use appropriate wire gauge for the current load
- • Secure all connections properly
- • Test the switch operation before final installation
Common Terminal Markings
• C or COM: Common terminal
• NO: Normally Open
• NC: Normally Closed
• 1, 2, 3... Terminal numbers
Wire Color Standards
• Red: Live/Hot wire
• Black: Load/Switched live
• Blue: Neutral (AC)
• Green/Yellow: Ground/Earth
Product Description
About Goboll Electronics
Founded in 1989, Zhejiang Goboll Electronics Co., Ltd. specializes in research, development, and manufacturing of over 200 specifications of electrical switches and components.
Our products have obtained certifications such as UL, VDE, TUV, KC, ETL, CE, CB, SAA, CCC, and CQC, ensuring the highest quality standards.
