Double Pole Double Throw Switch
Professional DPDT Switches for Industrial & Commercial Applications
What is a DPDT Switch?
A Double Pole Double Throw (DPDT) switch is a versatile electrical component that controls two separate circuits simultaneously. With six terminals, it can switch two circuits between two different positions, making it ideal for reversing motor directions, switching between power sources, or controlling complex electrical configurations.
Goboll's DPDT switches are engineered for reliability and precision, featuring high-quality contacts and robust construction that ensures long-lasting performance in demanding applications.
- Six terminal configuration
- Controls two independent circuits
- Momentary or maintained operation
- Multiple actuator styles available

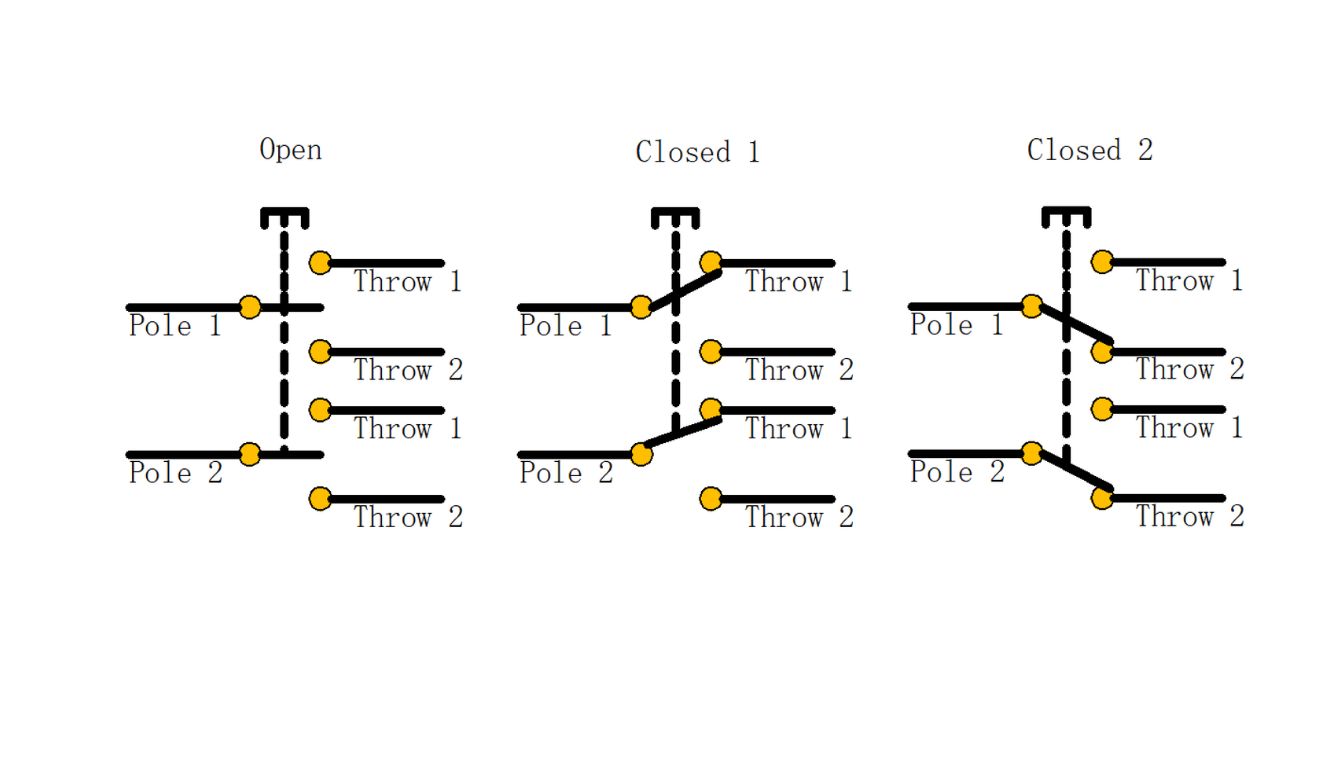

DPDT Switch Internal Configuration
Key Features & Benefits
Goboll DPDT switches combine superior engineering with reliable performance
High Current Rating
Rated for up to 20A at 250VAC, suitable for heavy-duty applications and industrial equipment.
Multiple Certifications
UL, VDE, TUV, CE, and CCC certified ensuring compliance with international safety standards.
Customizable Options
Available with various actuators, illumination options, and terminal configurations to meet specific requirements.
Technical Specifications
Detailed specifications for Goboll DPDT switches
Electrical Specifications
| Rated Voltage | 125V/250VAC, 30VDC |
| Rated Current | 15A/20A at 125VAC |
| Contact Configuration | 2 Pole, 2 Throw (6 terminals) |
| Contact Material | Silver alloy contacts |
| Dielectric Strength | 2000VAC (1 minute) |
Mechanical Specifications
| Operating Force | 3-10N (depending on type) |
| Mechanical Life | 100,000 operations minimum |
| Operating Temperature | -25°C to +85°C |
| IP Rating | IP67 (sealed models) |
| Mounting | Panel mount, PCB mount |
Common Applications
DPDT switches are essential components in various industries
Motor Control
Reversing motor direction and speed control applications
Power Switching
Switching between different power sources or circuits
Industrial Equipment
Control panels and machinery operation controls
Automotive
Vehicle electrical systems and accessory controls
Product Gallery
View our range of DPDT switch configurations
Toggle DPDT Switch
Classic toggle actuator with robust construction
Rocker DPDT Switch
Modern rocker design with illumination options

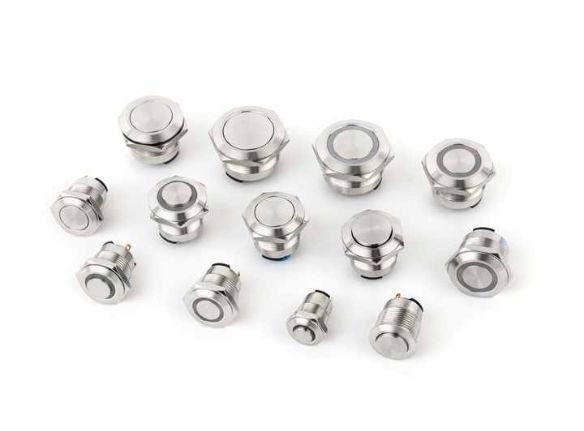

Push Button DPDT
Momentary action with spring return mechanism
Why Choose Goboll DPDT Switches?
Over 30 years of expertise in switch manufacturing
Quality Assurance
CNAS accredited laboratory and ISO certified manufacturing processes
Fast Delivery
Global supply chain with branches worldwide for quick delivery
Custom Solutions
Tailored switch solutions to meet specific application requirements
Get Your DPDT Switch Quote Today
Contact our technical team for detailed specifications, pricing, and custom solutions
